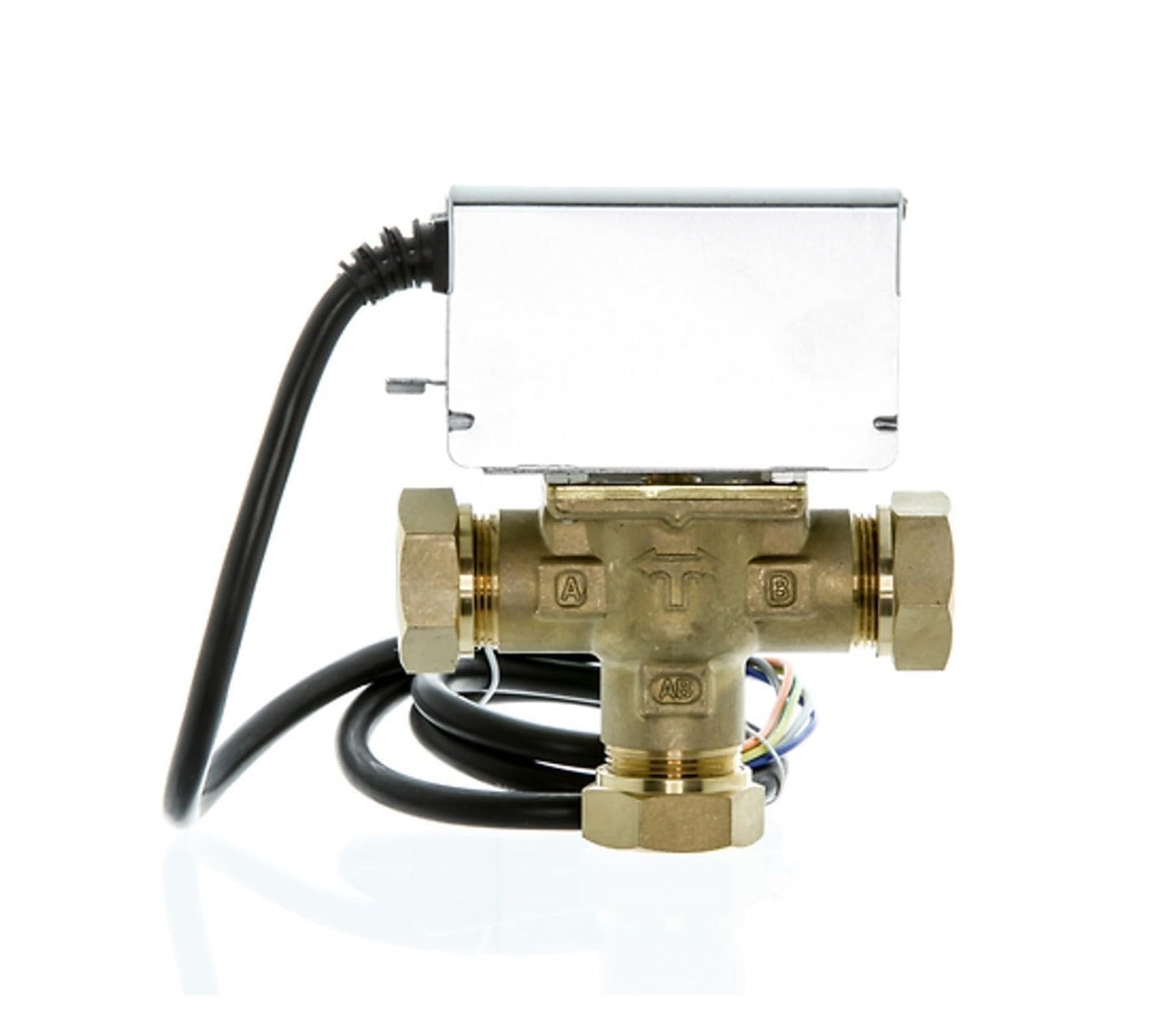

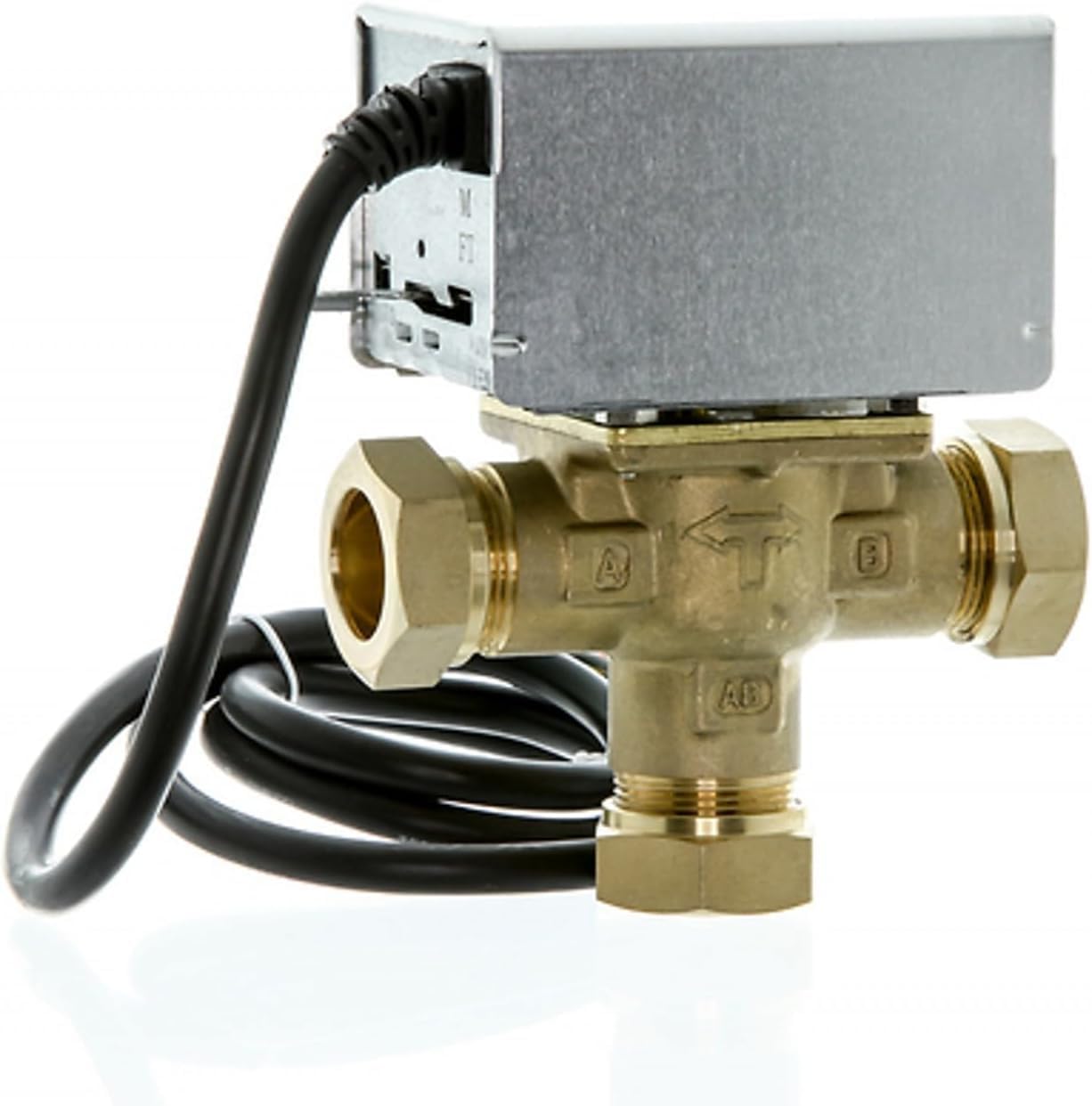

3 Port Mid Position Zone Valve 22mm for Central Heating & Hot Water Systems

The Team Controls TC-V322 3 Port Mid Position Zone Valve is a high-quality motorised valve designed for reliable control of heating and hot water in fully pumped Y-Plan central heating systems. Featuring 22mm compression connections and a spring return actuator, it provides dependable switching between heating, hot water, or both simultaneously.

Designed as a direct replacement for the Honeywell V4073A, the TC-V322 offers straightforward installation using industry standard wiring colours and connection sizes. The built-in SPST auxiliary switch provides reliable boiler and pump control, while the manual override lever allows easy filling, draining and commissioning of the heating system.

Manufactured for long-lasting performance, the Team Controls TC-V322 is suitable for both new installations and replacement projects. It is compatible with a wide range of leading motorised valves, making it an ideal replacement for many existing 22mm mid position valves.

Features

• 22mm compression fittings for easy installation
• Compatible with many leading brands including Honeywell, Salus, Tower, Banico, Corgi, ESi, Drayton and Danfoss
• Manual override lever for filling, draining and commissioning
• Reliable spring return operation
• Industry standard cable colours for straightforward wiring
• Suitable for domestic and commercial central heating systems
• Designed for fully pumped Y-Plan heating systems

Specifications

• Model: TC-V322
• Valve Type: 3 Port Mid Position Spring Return Zone Valve
• Connection Size: 22mm Compression
• Supply Voltage: 220–240V AC, 50Hz
• Auxiliary Switch: SPST
• Switch Rating: 3A
• Power Consumption: 6W
• Maximum Differential Pressure: 1 Bar
• Maximum Static Pressure: 10 Bar
• Maximum Fluid Temperature: 100°C
• Operating Temperature: +5°C to +88°C
• Cable Length: 1 Metre

The Team Controls TC-V322 3 Port Mid Position Zone Valve delivers reliable and efficient control of heating and hot water circuits. With simple installation, robust performance and compatibility with many leading brands, it is an ideal choice for replacing existing motorised valves or installing new Y-Plan heating systems.
