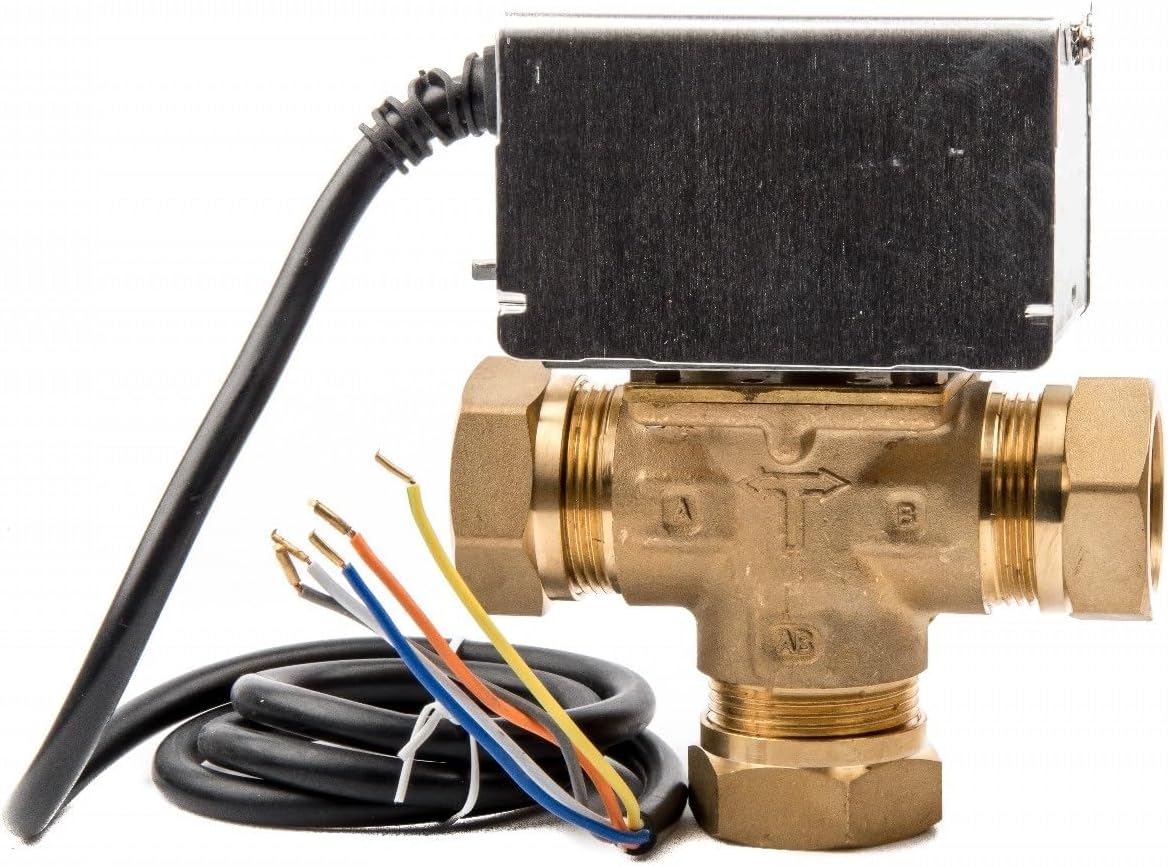

3 Port Motorised Zone Valve 28mm for Central Heating & Hot Water Systems

The Team Controls TC-V328 3 Port Mid Position Zone Valve is a high-quality motorised valve designed to provide reliable control of heating and hot water in fully pumped Y-Plan central heating systems. Featuring 28mm compression connections and a spring return actuator, it delivers dependable switching between heating, hot water, or both simultaneously, making it ideal for larger domestic and commercial heating systems.

Designed as a direct replacement for the Honeywell V4073A 28mm, the TC-V328 offers straightforward installation using industry standard wiring colours and connection sizes. The built-in SPST auxiliary switch provides reliable boiler and pump control, while the manual override lever allows easy filling, draining and commissioning of the heating system.

Manufactured for long-lasting performance, the Team Controls TC-V328 is suitable for both new installations and replacement projects. It is compatible with a wide range of leading motorised valves, making it an ideal replacement for existing 28mm mid position valves.

Features

• 28mm compression fittings for larger heating circuits
• Direct replacement for Honeywell V4073A 28mm
• Compatible with many leading brands including Honeywell, Salus, Banico, Corgi, ESi, Drayton and Danfoss
• Manual override lever for filling, draining and commissioning
• Reliable spring return operation
• Industry standard cable colours for straightforward wiring
• Suitable for domestic and commercial central heating systems
• Designed for fully pumped Y-Plan heating systems

Specifications

• Model: TC-V328
• Valve Type: 3 Port Mid Position Spring Return Zone Valve
• Connection Size: 28mm Compression
• Supply Voltage: 220–240V AC, 50Hz
• Auxiliary Switch: SPST
• Switch Rating: 3A
• Power Consumption: 6W
• Maximum Differential Pressure: 1 Bar
• Maximum Static Pressure: 10 Bar
• Maximum Fluid Temperature: 100°C
• Operating Temperature: +5°C to +88°C
• Cable Length: 1 Metre
• Application: Fully pumped Y-Plan central heating and hot water systems

The Team Controls TC-V328 3 Port Mid Position Zone Valve delivers reliable and efficient control of heating and hot water circuits. With simple installation, robust performance and compatibility with many leading brands, it is the ideal choice for replacing existing 28mm motorised valves or installing new Y-Plan heating systems where higher flow capacity is required.
