Team Controls 7 Day 2 Channel Programmer for Central Heating & Hot Water – TC-2CP

The Team Controls TC-2CP 7 Day 2 Channel Programmer is a versatile digital heating programmer designed to provide independent control of central heating and domestic hot water. Suitable for both gravity-fed and fully pumped heating systems, it offers flexible programming and convenient control for modern domestic heating installations.

With dual independent channels, the programmer allows heating and hot water to be scheduled separately, making it suitable for both S-Plan and Y-Plan systems. Users can choose from 1-day, 5+2-day or 7-day programming modes, with up to three ON/OFF periods per day for each channel.

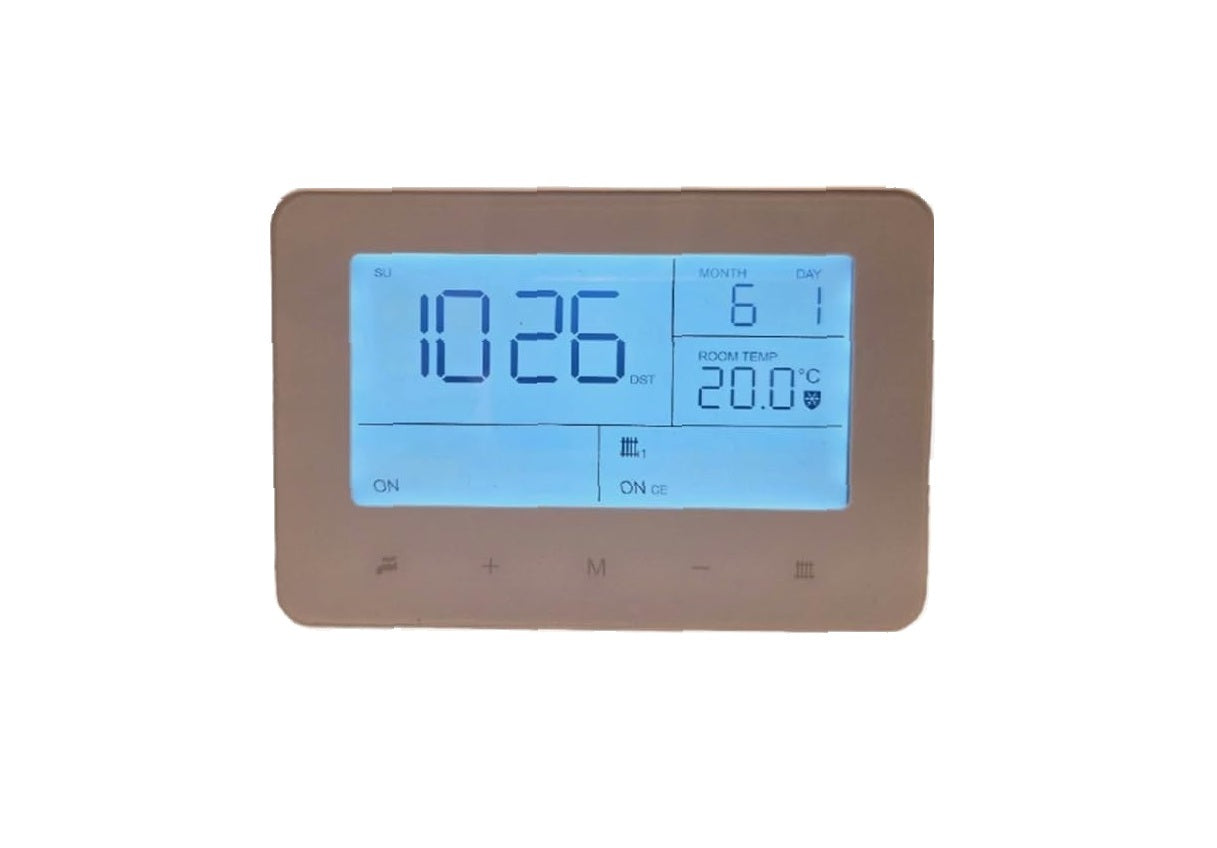

The clear LCD display with icons and backlighting makes programming simple, while touch controls provide intuitive operation with visual feedback. Additional functions include a temporary +1 Hour Boost, Advance function, adjustable frost protection and a holiday mode that can suspend both channels for up to 60 days.

The TC-2CP also allows selection between Fully Pumped (P) and Gravity-Fed (G) system modes. In P mode, central heating and hot water operate independently, while G mode links the central heating channel to the hot water channel.

Features

• 7-day, 2-channel heating programmer
• Independent control of central heating and domestic hot water
• Suitable for S-Plan and Y-Plan heating systems
• Compatible with gravity-fed and fully pumped systems
• Three ON/OFF periods per day for each channel
• Operating modes: ON, ONCE, AUTO and OFF
• Touch-button controls with visual feedback
• +1 Hour Boost function, adjustable up to 9 hours
• Advance function for immediate programme override
• 12/24-hour clock selection
• Automatic daylight saving time adjustment

Specifications

• Channels: 2 – Central Heating & Hot Water
• Power Supply: 230V AC Mains
• Programming Modes: 1 Day / 5+2 Day / 7 Day
• Periods Per Day: 3 ON/OFF periods per channel
• System Compatibility: Gravity-Fed & Fully Pumped
• System Modes: P Mode / G Mode
• Display: LCD with icons and backlighting
• Frost Protection: OFF–20°C, adjustable in 0.5°C increments
• Holiday Mode: 0–60 Days
• Compliance: UKCA / CE

Installation & System Compatibility

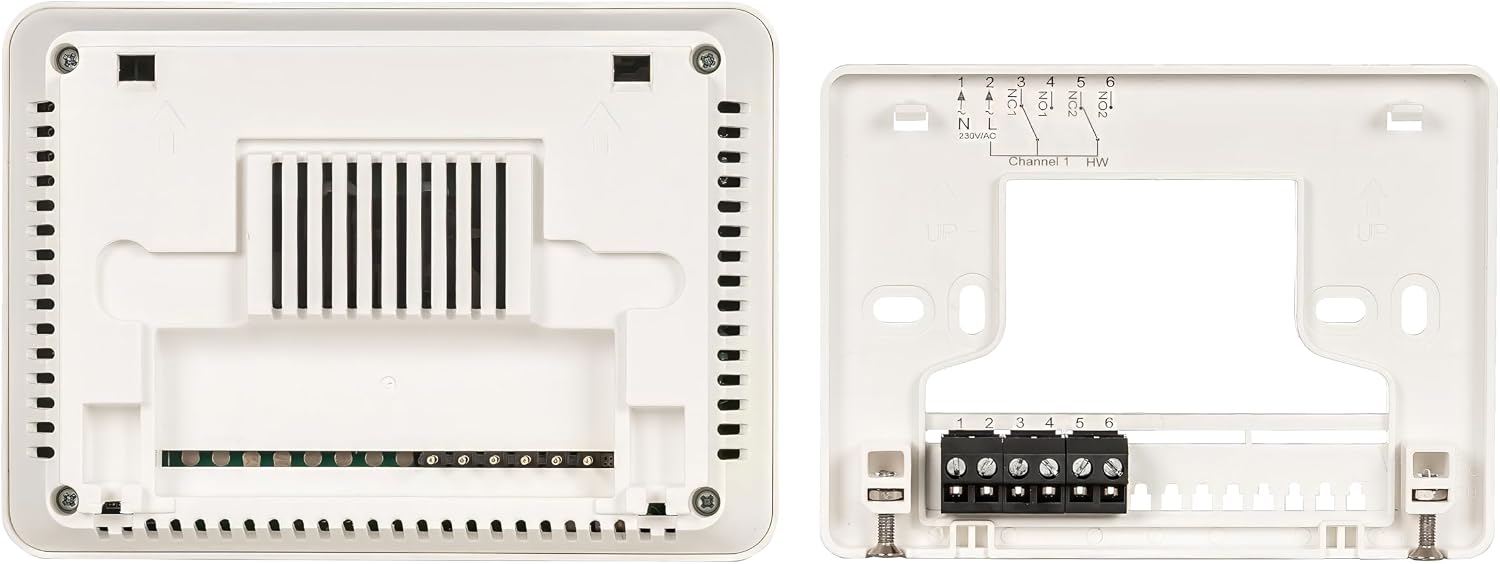

The Team Controls TC-2CP is designed for installation in a dry indoor location away from direct heat sources. It connects to a 230V mains supply and can be configured during setup for either fully pumped or gravity-fed systems.

In P mode, the programmer provides independent control of the central heating and hot water channels. In G mode, the central heating channel is linked to the hot water channel for use with gravity-fed systems.

The Team Controls TC-2CP provides flexible, reliable and easy-to-use heating control, making it an ideal choice for modernising existing heating systems or installing a new programmable controller for central heating and domestic hot water.
