7 Day Fused Timer Spur Switch Digital LED Lighting Immersion Heating Security TC-DFST

TC-DFST

Digital Fused Spur Timer

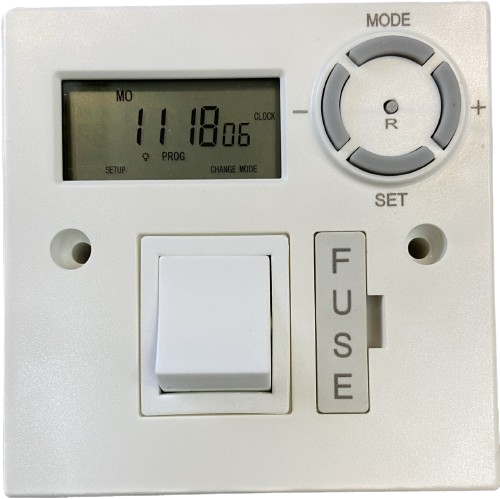

The TC-DFST is a digital fused-spur time switch. The timer is suitable for pattress box mounting. The 7 day programming logic controls a mains-linked switch, with a resistive rating of 13 amperes. There is an inbuilt re-chargeable cell to keep the timer running in the event of a loss of mains power.

• 7 Day fused spur timer
• Pattress box mounting
• Double-pole isolation
• Internally-linked mains switching
• 200 Hour running reserve

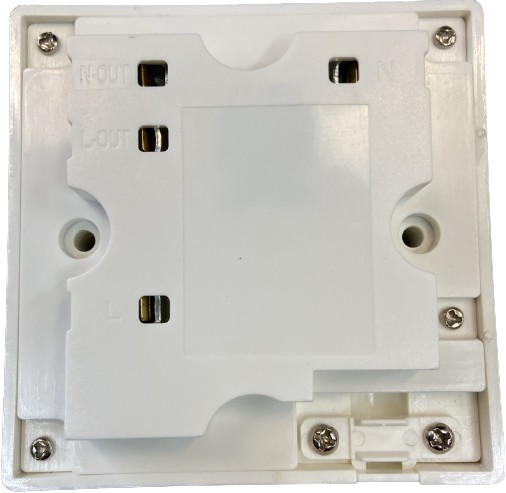

Connections: 4 x wire-protect screw terminals
Power consumption: 1VA @ 230v 50hz
Resistive load: 13 Amperes
Inductive load: 2 Amperes (cos ø 0.6)
Minimum load: 100mA @ 20v ac/dc
Runnning reserve: 200 Hours
Temperature rating: -20T55
Accuracy quartz regulated: (typically /- 2.5 sec / day)
Minimum switching period: 1 minute
Programme capacity: 24 on/off programmes
Manual override: fix on, timed, fix off & random
