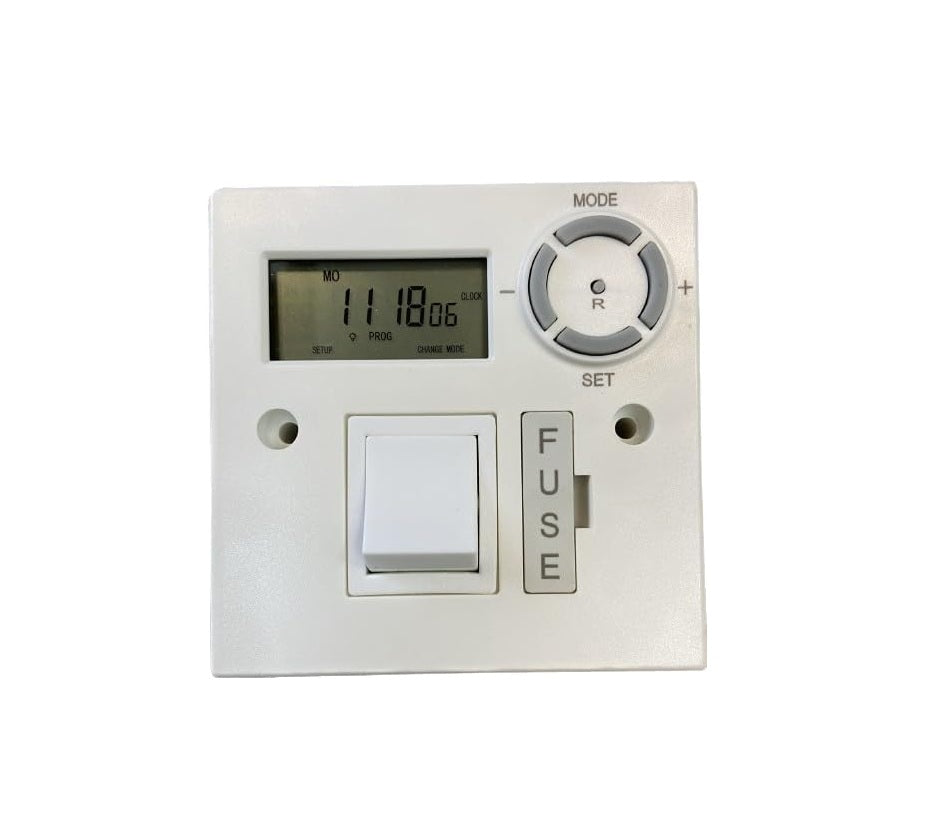

Team Controls Digital Fused Spur Timer – TC-DFST

The Team Controls TC-DFST Digital Fused Spur Timer is a versatile 7-day programmable time switch designed to provide reliable control of mains-powered heating, hot water and electrical systems. With a clear digital interface and flexible programming options, it allows users to automate equipment operation according to their daily and weekly schedules.

Designed for installation into a standard pattress box, the TC-DFST features double-pole isolation and internally linked mains switching, providing a practical and secure solution for controlling electrical loads. The timer can store up to 24 ON/OFF programmes, with a minimum switching period of just one minute.

An integrated 200-hour rechargeable running reserve ensures that programmed settings and timer operation are maintained during temporary mains power interruptions. Quartz-regulated timing provides accurate and dependable operation.

The TC-DFST also includes a range of manual override options, including fixed ON, timed, fixed OFF and random modes, providing additional flexibility when required.

Features

• 7-day digital fused spur timer
• Suitable for pattress box mounting
• Double-pole isolation
• Internally linked mains switching
• 200-hour rechargeable running reserve
• Quartz-regulated timing for accurate operation
• Manual override with fixed ON, timed, fixed OFF and random modes
• Suitable for a wide range of heating and electrical applications

Specifications

• Model: TC-DFST
• Supply: 230V AC, 50Hz
• Power Consumption: 1VA
• Resistive Load: 13A
• Inductive Load: 2A (cos φ 0.6)
• Minimum Load: 100mA at 20V AC/DC
• Temperature Rating: -20°C to 55°C
• Timing Accuracy: Quartz regulated, typically ±2.5 seconds/day
• Minimum Switching Period: 1 minute
• Programme Capacity: 24 ON/OFF programmes
• Connections: 4 x wire-protect screw terminals
• Mounting: Pattress box

The Team Controls TC-DFST Digital Fused Spur Timer combines accurate 7-day programming, reliable power-loss protection and flexible manual control in a compact fused spur design, making it an ideal choice for domestic and commercial heating, hot water and electrical applications.
