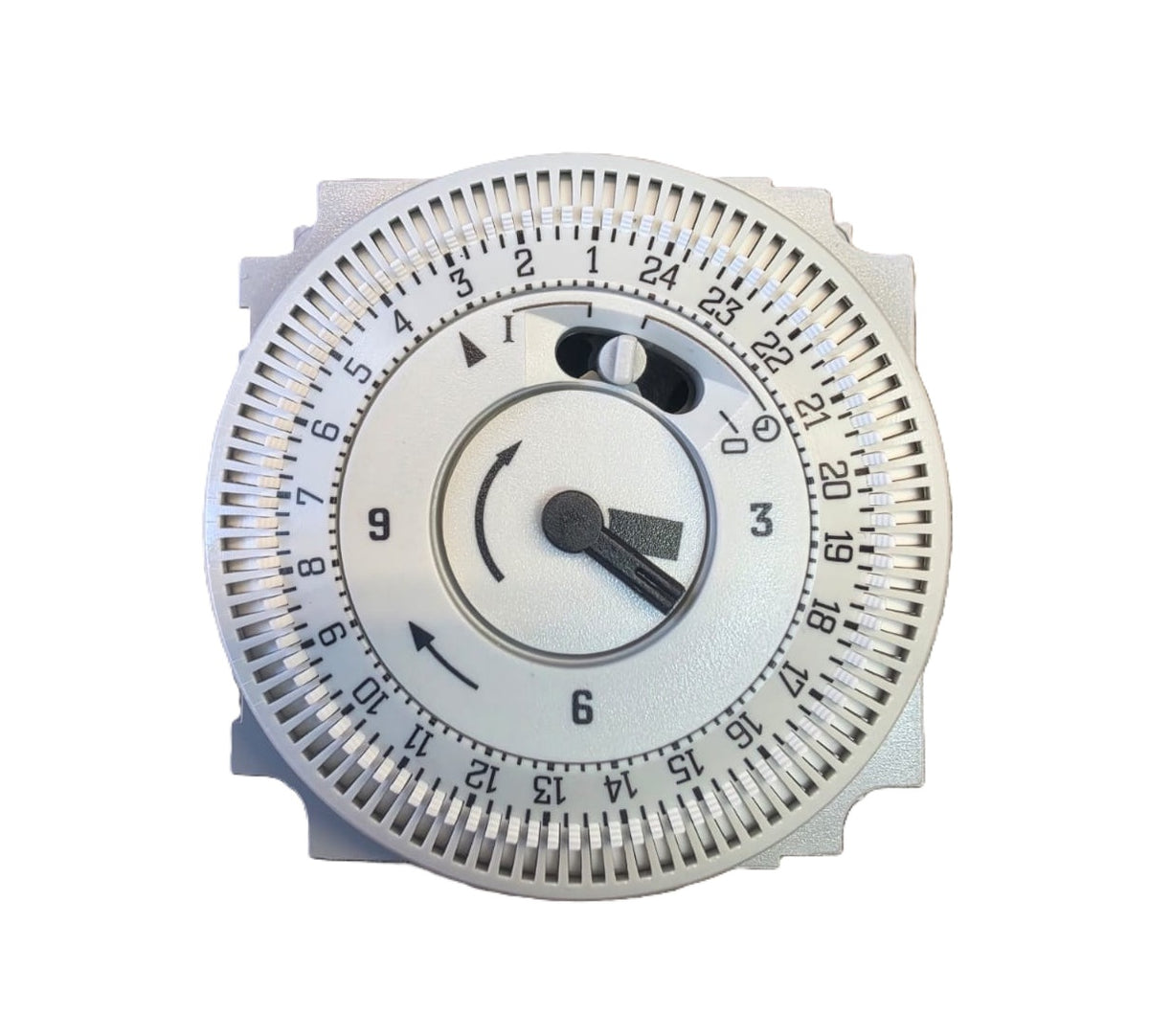

Team Controls 24 Hour Timer Module with Manual Override – TC-FM09

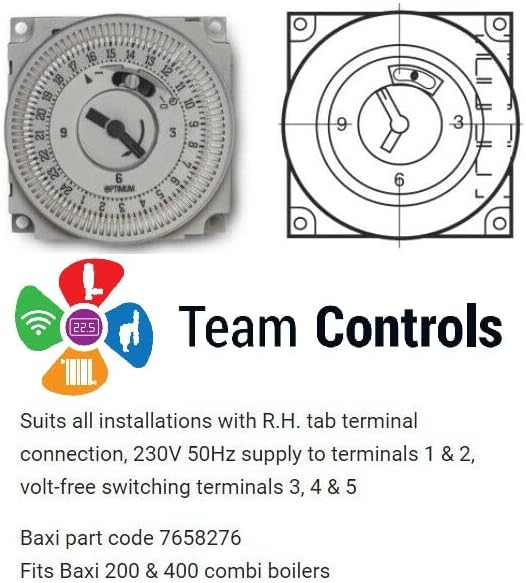

The Team Controls TC-FM09 24 Hour Timer Module is a reliable 24-hour synchronous timer designed to provide accurate and convenient control of central heating and hot water systems. Manufactured to the same specification as the Baxi 24 Hour Mechanical Timer (Part No. 7658276), it is a direct plug-in replacement for compatible Baxi 200 and 400 Combi boilers.

Designed for quick and straightforward installation, the TC-FM09 plugs directly into compatible boiler control panels without the need for additional wiring modifications. Featuring a daily programme with 15-minute tappet intervals, it allows precise scheduling of heating and hot water, helping to improve energy efficiency and reduce running costs.

The integrated manual override function enables the heating to be switched on or off instantly without affecting the programmed schedule. With volt-free SPDT switching contacts, the timer is suitable for a wide range of heating control applications.

Supplied as a timer module only (without enclosure), the TC-FM09 offers dependable performance and long service life, making it an ideal replacement for existing boiler timers.

Features

• Direct replacement for Baxi Part No. 7658276
• Fits Baxi 200 & 400 Combi Boilers
• Daily programming schedule
• Volt-free SPDT switching contacts
• Reliable synchronous motor operation
• Timer module supplied without enclosure
• Quick and easy installation

Specifications

• Model: TC-FM09
• Product Type: 24 Hour Timer Module
• Programming: 24 Hour Daily
• Switching Intervals: 15 Minutes
• Supply Voltage: 220–240V AC, 50Hz

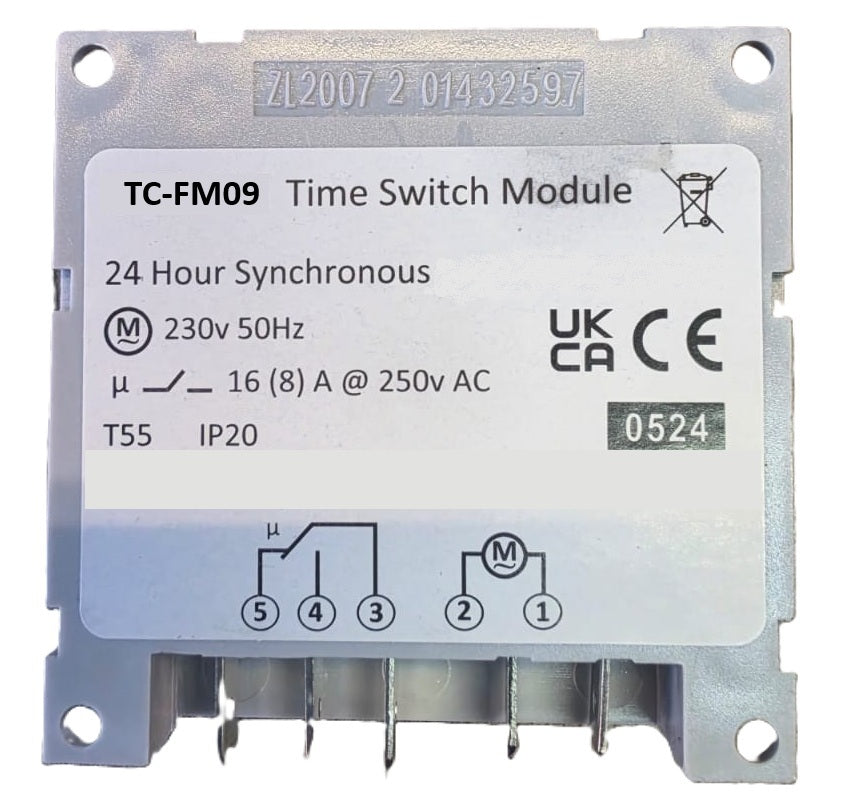

• Contact Type: Volt-Free SPDT
• Resistive Load: 16A
• Inductive Load: 8A
• Incandescent Lamp Load: 1300W
• Manual Override: Yes
• Enclosure: No (Timer Module Only)

Compatibility

• Original Baxi Part Number: 7658276
• Fits Baxi 200 Combi Boilers
• Fits Baxi 400 Combi Boilers

Note: Not suitable for discharge lighting or LED lighting without the use of a suitable contactor.

The Team Controls TC-FM09 Timer Module provides reliable, accurate heating and hot water control for compatible Baxi boilers. With simple plug-in installation, manual override and dependable daily programming, it is the ideal replacement timer module for maintaining efficient heating system operation.
