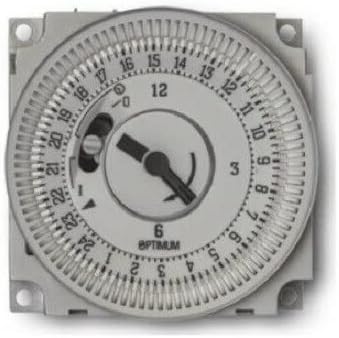

Team Controls 24 Hour Timer Module with Manual Override – TC-FM18

The Team Controls TC-FM18 24 Hour Timer Module is a reliable 24-hour synchronous timer designed to provide accurate and convenient control of central heating and hot water systems. It is a direct plug-in replacement for a range of Ideal boiler timer modules, making it the ideal solution for replacing worn or faulty timers.

Designed with a vertical tab terminal connection, the timer operates from a 220–240V AC 50Hz supply to terminals 1 & 2, with volt-free SPDT switching contacts on terminals 3, 4 & 5. Its plug-in design allows for quick and straightforward installation without the need for additional wiring modifications.

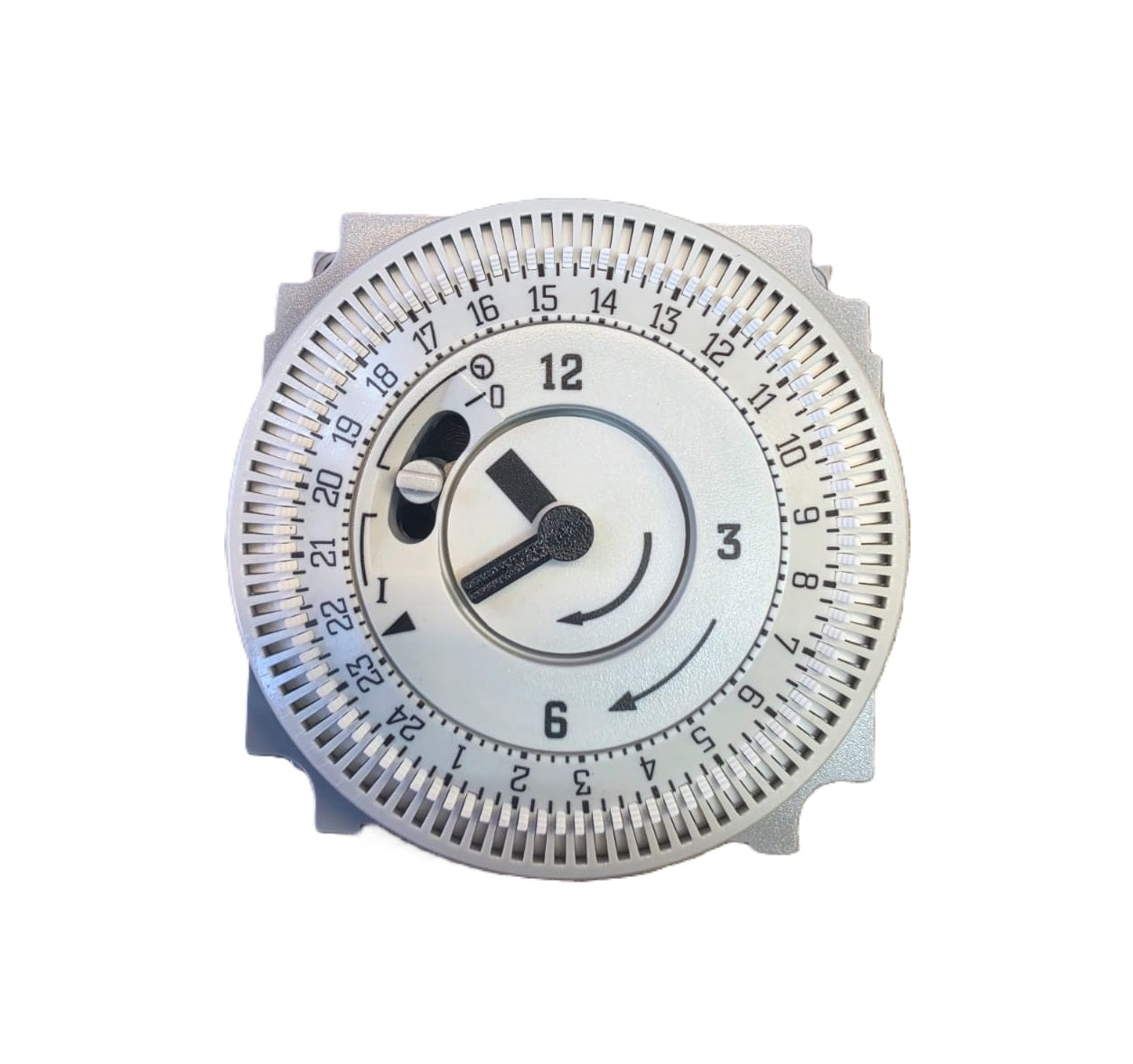

Featuring a 24-hour daily programme with 15-minute tappet intervals, the timer provides precise control over heating and hot water schedules, helping to improve energy efficiency and reduce running costs. The integrated manual override function allows the heating to be switched on or off instantly without affecting the programmed schedule.

Supplied as a timer module only (without enclosure), it is designed to fit directly into compatible Ideal boiler control panels.

Features

• Direct plug-in replacement timer module
• Vertical tab terminal connection
• 24-hour synchronous timer module
• Daily programming schedule
• 15-minute tappet switching intervals
• Volt-free SPDT switching contacts
• Reliable synchronous motor operation
• Timer module supplied without enclosure
• Quick and easy installation

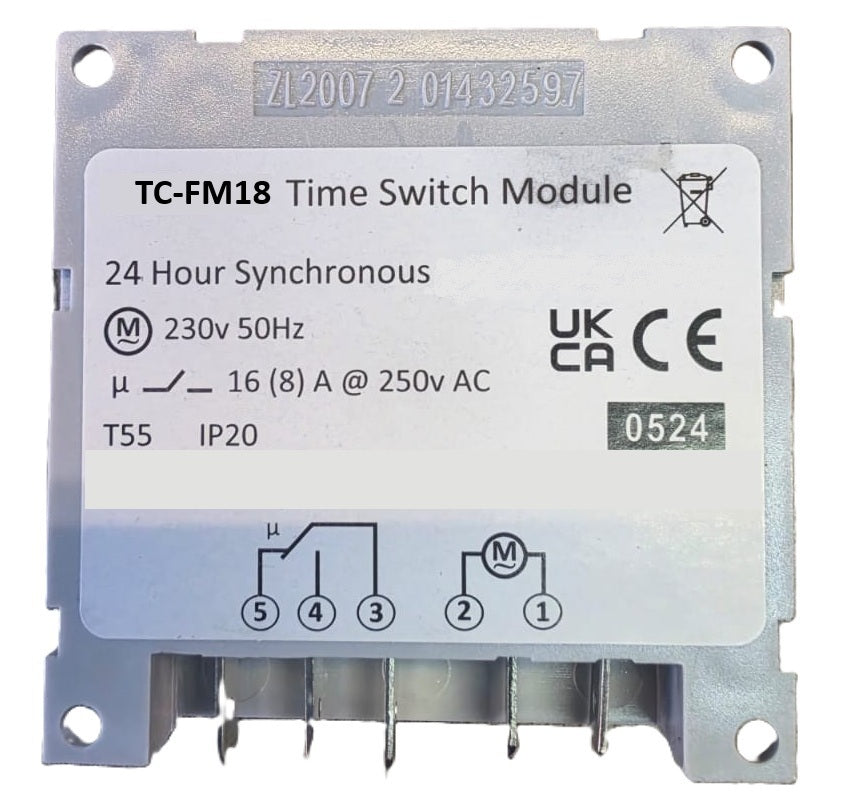

Specifications

• Model: TC-FM18
• Product Type: 24 Hour Timer Module
• Supply Voltage: 220–240V AC, 50Hz
• Power Supply Terminals: 1 & 2
• Switching Contacts: Volt-Free SPDT (Terminals 3, 4 & 5)
• Terminal Configuration: Vertical Tab
• Resistive Load: 16A
• Inductive Load: 8A
• Incandescent Lamp Load: 1300W
• Manual Override: Yes
• Enclosure: No (Timer Module Only)

Compatible Boilers

Suitable for the following Ideal boiler models and timer references:

• UIN 204839 – Logic & Logic+
• UIN 201168 – Esprit
• UIN 201391 – Excel
• UIN 208445 – Vogue
• IXUS

Note: Not suitable for discharge lighting or LED lighting without the use of a suitable contactor.

The Team Controls TC-FM18 Timer Module provides dependable and accurate heating control for compatible Ideal boilers. With simple plug-in installation, manual override and reliable daily programming, it is the ideal replacement timer module for maintaining efficient heating and hot water operation.
