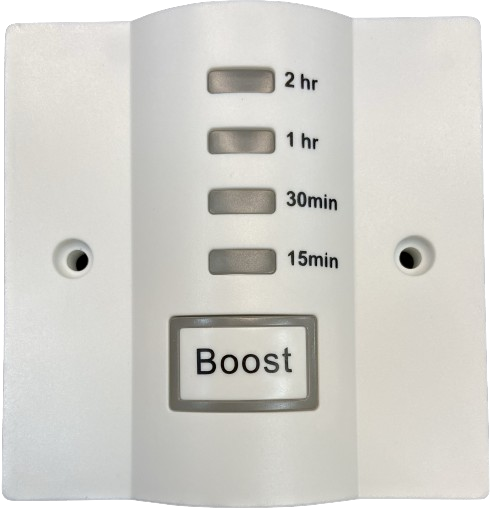

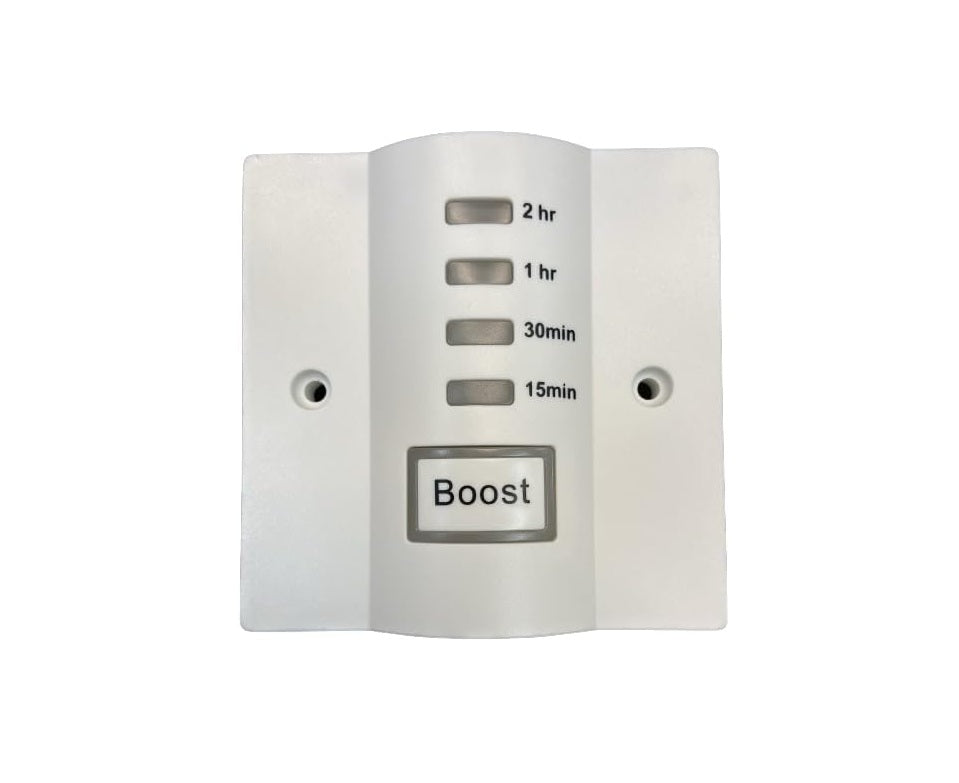

Team Controls 2 Hour Electronic Boost Timer with One-Button Control – TC-EBT2

The Team Controls TC-EBT2 Electronic Boost Timer is a simple and convenient solution for providing timed boost control of heating, hot water and other electrical systems. Featuring easy one-button operation and a clear visual indicator, the timer allows users to quickly select a preset boost period without the need for complicated programming.

The TC-EBT2 offers four selectable boost periods: 15 minutes, 30 minutes, 1 hour and 2 hours. Simply press the button up to four times to select the required boost duration. Press the button again to cancel the active boost.

Designed for flexible installation, the timer can be fitted either directly to a wall surface or into a standard pattress/socket box. The electronic timer operates an internally linked output relay with a 16A resistive load rating, making it suitable for a wide range of heating and electrical applications.

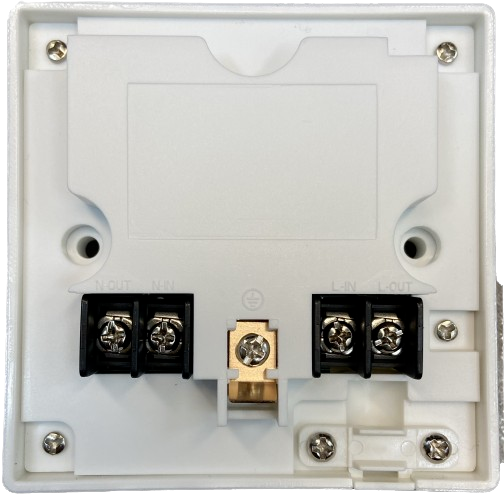

A dedicated earth park terminal is provided, along with four wire-protect screw terminals and a surface-run cord outlet with cable restraint for straightforward installation.

Features

• 2-hour electronic boost timer
• Simple one-button operation
• Four preset boost periods
• 15 minutes, 30 minutes, 1 hour or 2 hours
• Visual indicator for boost status
• Press up to 4 times to select boost duration
• Press again to cancel boost
• Suitable for surface or in-wall installation
• Compatible with standard pattress/socket boxes
• Internally linked output relay
• Surface-run cord outlet with cable restraint
• Quartz-regulated timing for accurate operation

Specifications

• Model: TC-EBT2
• Supply Voltage: 220–240V AC, 50Hz
• Resistive Load: 16A
• Accuracy: Quartz regulated, typically ±1.0 second
• Temperature Rating: -10°C to 45°C
• Connections: 4 x wire-protect screw terminals + earth park
• Dimensions: 85 x 85 x 30mm
• Weight: 150g

The Team Controls TC-EBT2 provides straightforward, reliable timed boost control with no complicated programming. Its compact design, simple one-button operation and multiple preset time periods make it an ideal choice for domestic and commercial heating and hot water applications.
