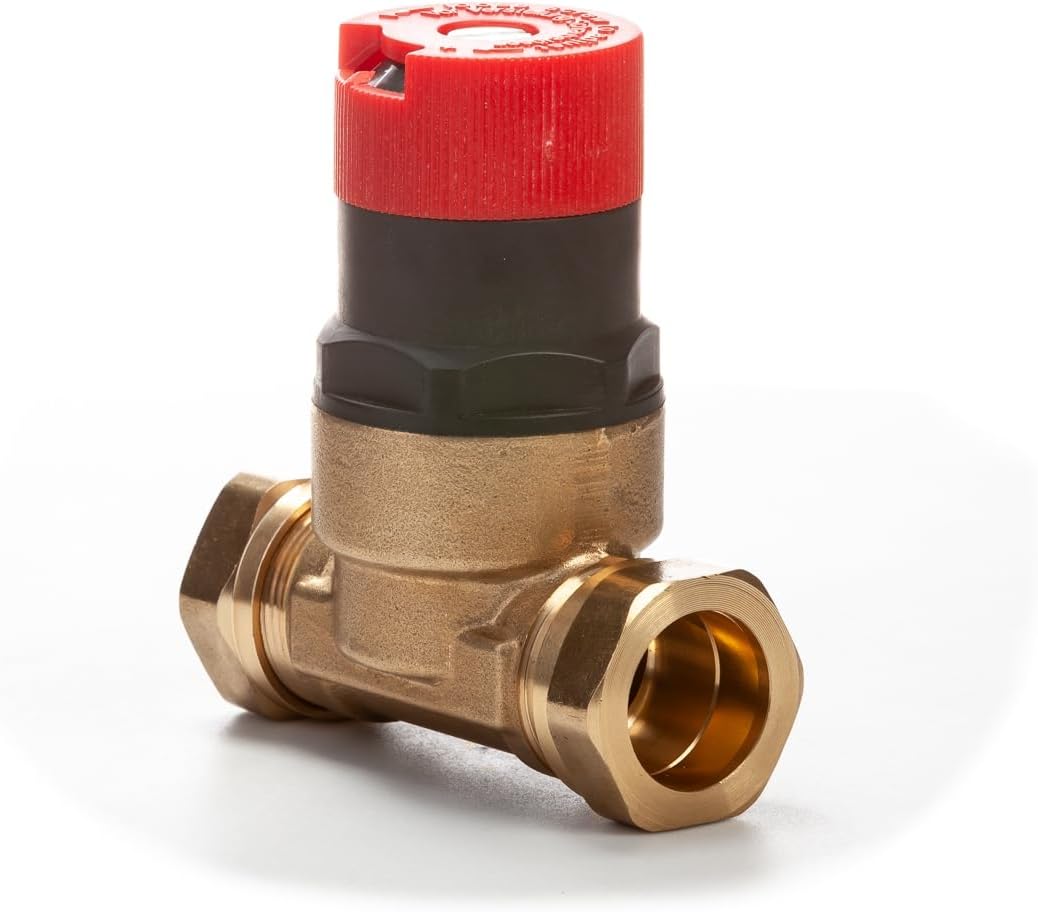

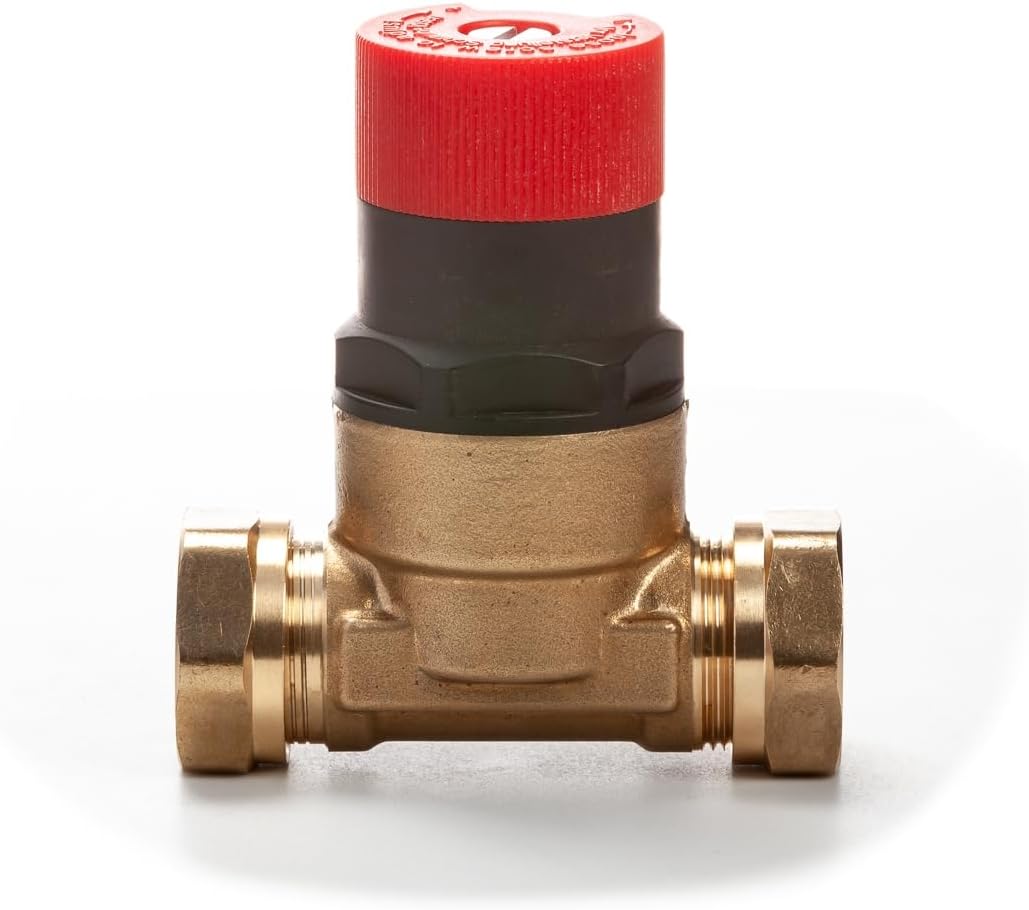

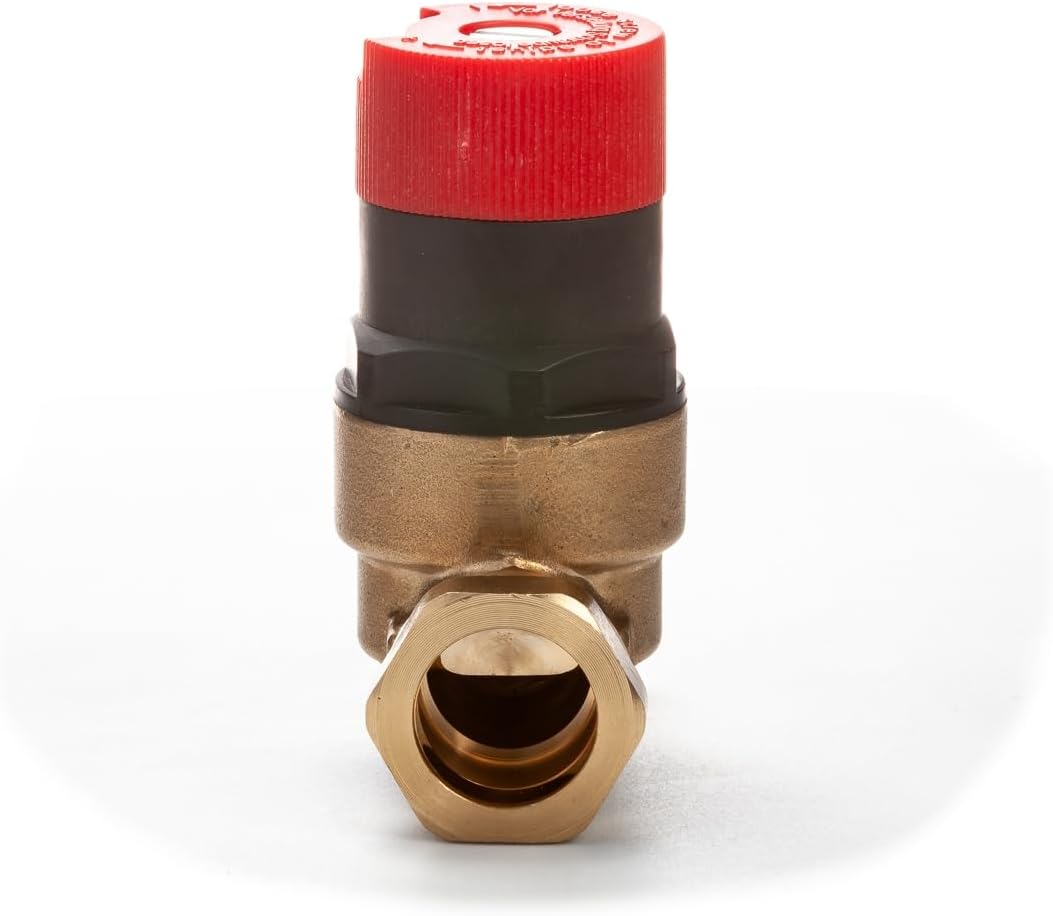

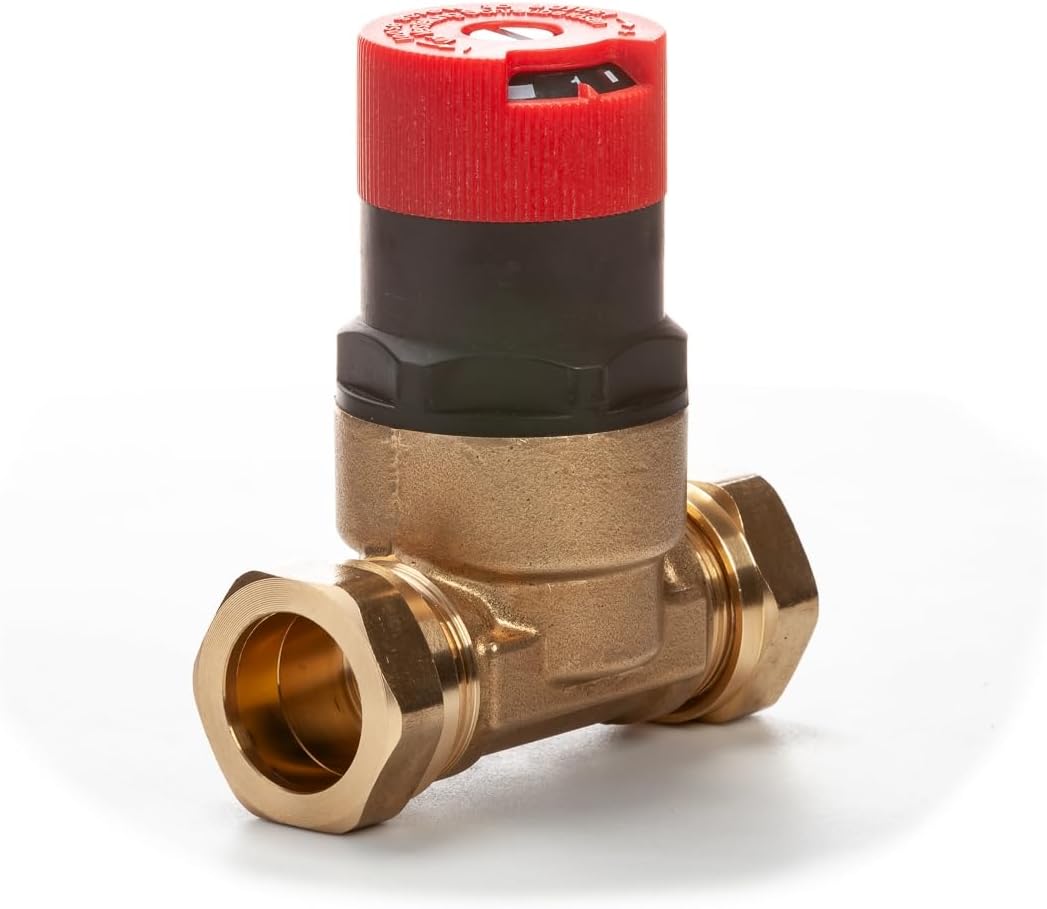

Team Controls Automatic Bypass Valve 22mm – TC-ABVST

The Team Controls TC-ABVST Automatic Bypass Valve is designed to maintain the correct water flow through central heating systems, protecting boilers, pumps and system components while improving overall heating efficiency. It is ideal for installations fitted with thermostatic radiator valves (TRVs) and systems requiring a boiler bypass to allow pump overrun operation after motorised zone valves have closed.

As TRVs gradually close when room temperatures increase, system resistance rises and water flow through the heating circuit can become restricted. The TC-ABVST automatically responds to increasing differential pressure by opening the bypass route, maintaining the required flow rate through the boiler and ensuring stable system operation.

By maintaining minimum circulation, the valve helps reduce unwanted system noise caused by closing TRVs and zone valves, prevents excessive pump stress and protects the boiler heat exchanger from damage caused by insufficient water flow.

Featuring an adjustable and lockable pressure setting, the TC-ABVST can be accurately configured to meet the requirements of different heating systems. Installation is straightforward using the integrated 22mm compression connections, with the valve fitted between the flow and return pipework after the circulating pump.

Features

• Automatic bypass valve for sealed central heating systems
• Maintains minimum flow through the boiler
• Ideal for systems fitted with thermostatic radiator valves (TRVs)
• Allows pump overrun operation when zone valves close
• Reduces system noise caused by restricted flow
• Protects pumps and boiler heat exchangers
• Adjustable differential pressure setting
• Lockable pressure adjustment
• Durable construction for reliable long-term performance
• Simple 22mm compression installation

Specifications

• Model: TC-ABVST
• Product Type: Automatic Bypass Valve
• Connection Size: 22mm Compression
• Maximum Flow Rate: 50 Litres per minute
• Differential Pressure Range: 0.1–0.6 Bar
• Pressure Setting: Adjustable and lockable
• Installation Position: Between flow and return pipework after the circulating pump
• Application: Domestic and commercial central heating systems

The Team Controls TC-ABVST Automatic Bypass Valve provides reliable flow regulation, quieter heating system operation and enhanced protection for boilers and pumps. By maintaining consistent circulation, it helps improve system efficiency and extends the working life of heating components.
