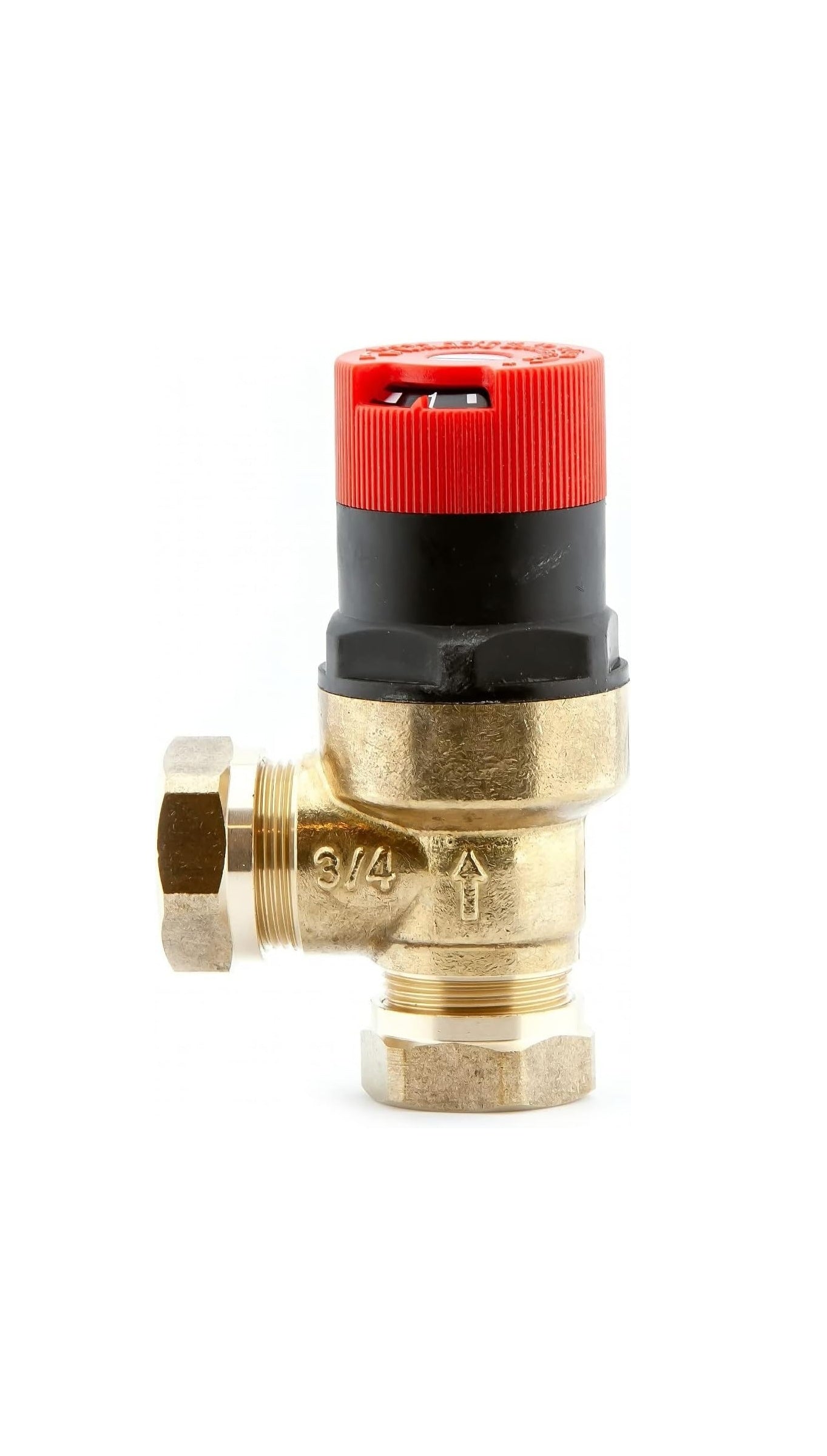

Team Controls 22mm Automatic Bypass Valve – TC-ABV

The Team Controls TC-ABV 22mm Automatic Bypass Valve is designed to regulate differential pressure within central heating systems, helping maintain consistent water flow through the boiler as thermostatic radiator valves (TRVs) and zone valves open and close.

By automatically adjusting the bypass flow as system resistance changes, the valve helps maintain stable system pressure and ensures a constant flow through the boiler. This can help reduce system noise, protect heating components and improve overall system performance.

The TC-ABV features an adjustable and lockable differential pressure setting, allowing it to be configured to suit the requirements of the heating system. With a high flow capacity of up to 50 litres per minute and a differential pressure range of 0.1 to 0.6 bar, it is suitable for a wide range of domestic and commercial central heating applications.

Features

• Automatic differential pressure bypass valve
• Regulates heating system differential pressure
• Maintains constant flow through the boiler
• Helps reduce system noise
• Adjustable differential pressure range
• Lockable pressure setting
• Helps protect boilers and heating system components
• Suitable for domestic and commercial central heating systems

Specifications

• Model: TC-ABV
• Product Type: Automatic Bypass Valve
• Connection Size: 22mm Compression
• Maximum Flow Rate: 50 Litres per Minute
• Differential Pressure Range: 0.1–0.6 Bar
• Pressure Setting: Adjustable and Lockable

The Team Controls TC-ABV 22mm Automatic Bypass Valve provides reliable differential pressure control, helping maintain efficient heating system operation, reduce unwanted noise and ensure a constant flow through the boiler.
