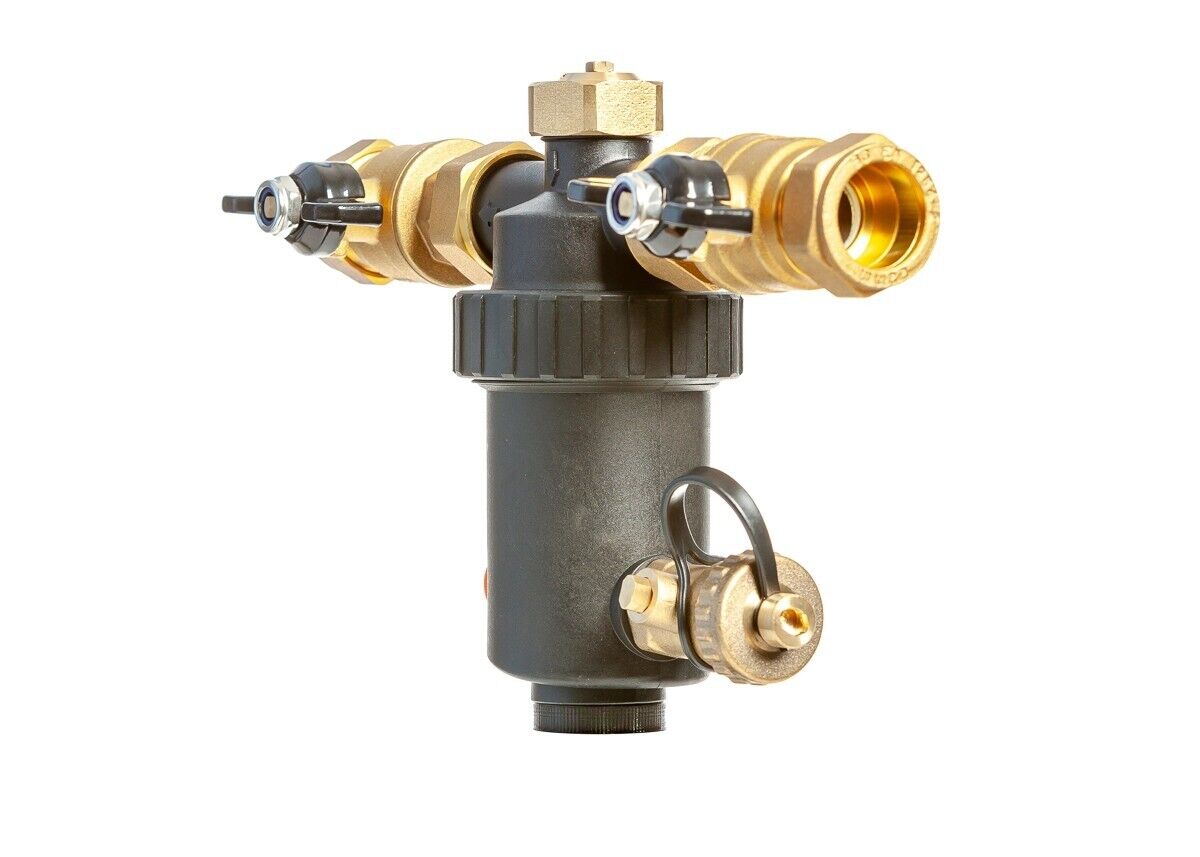

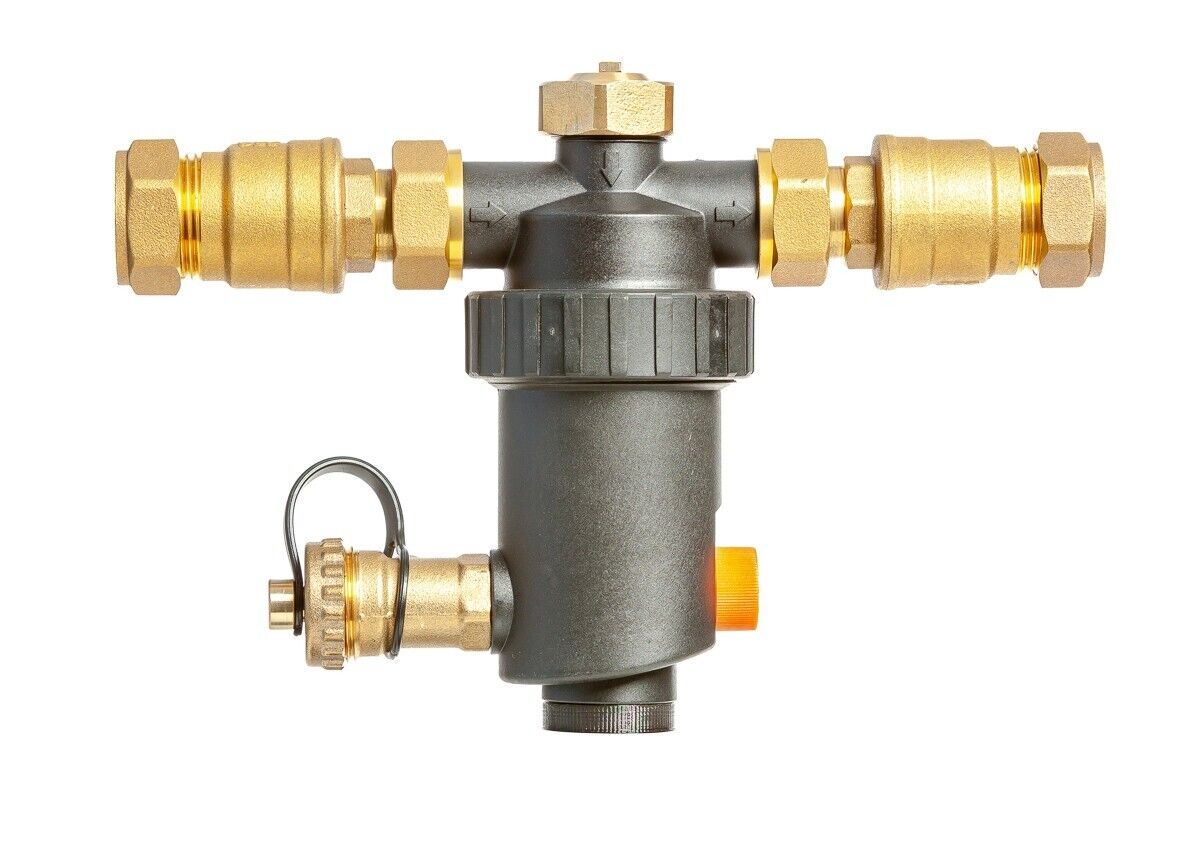

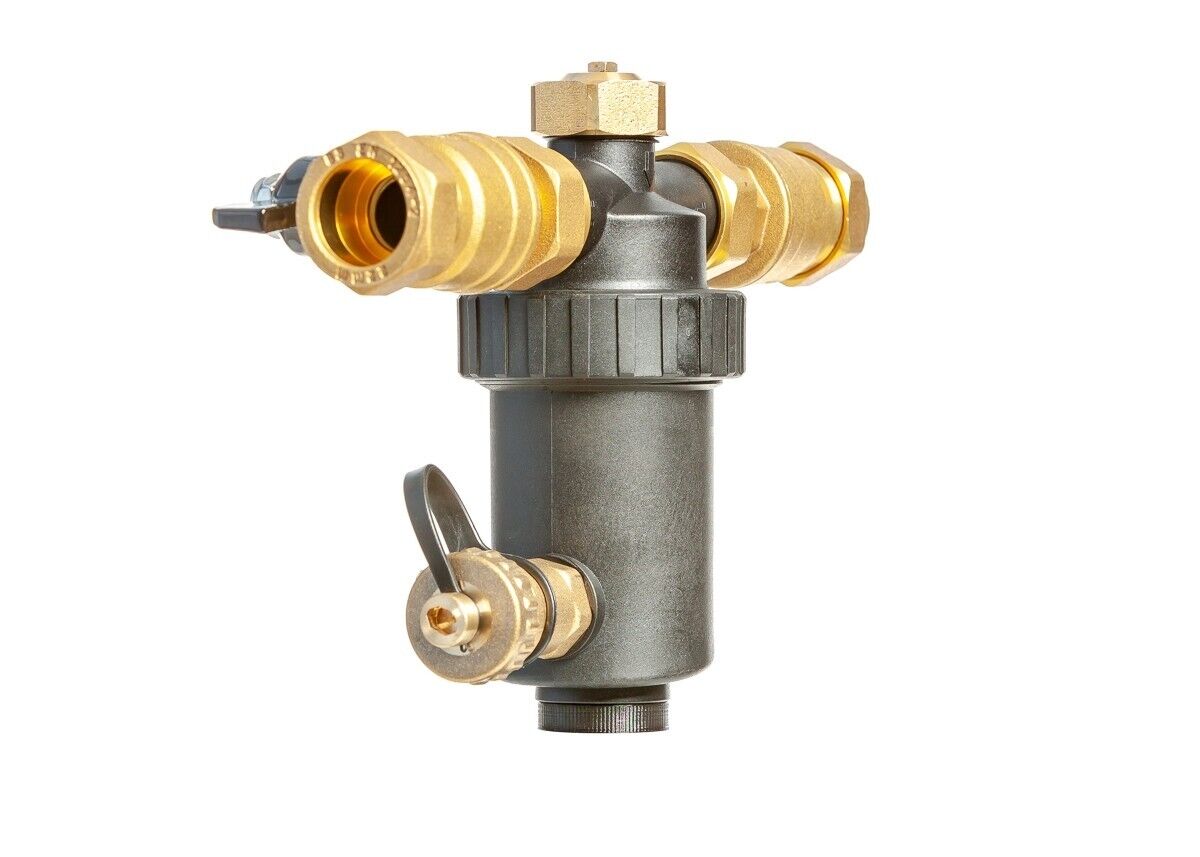

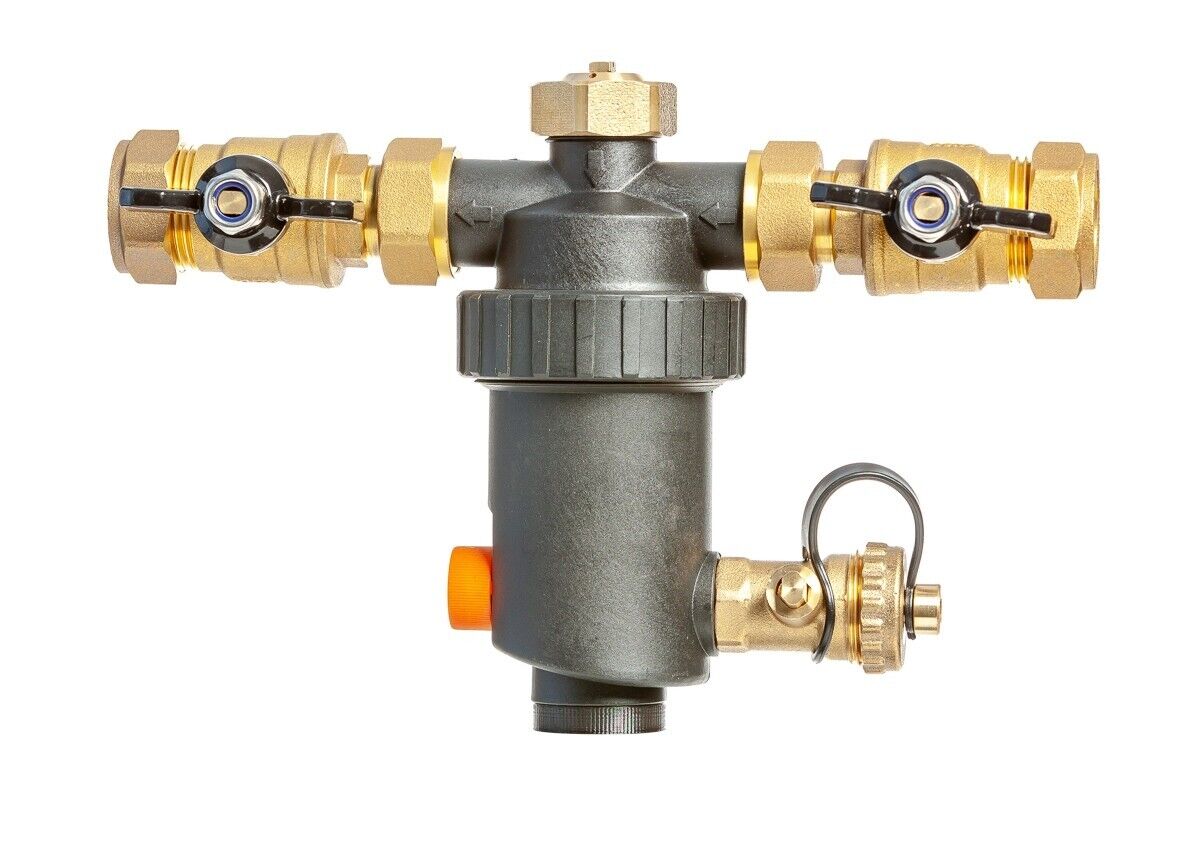

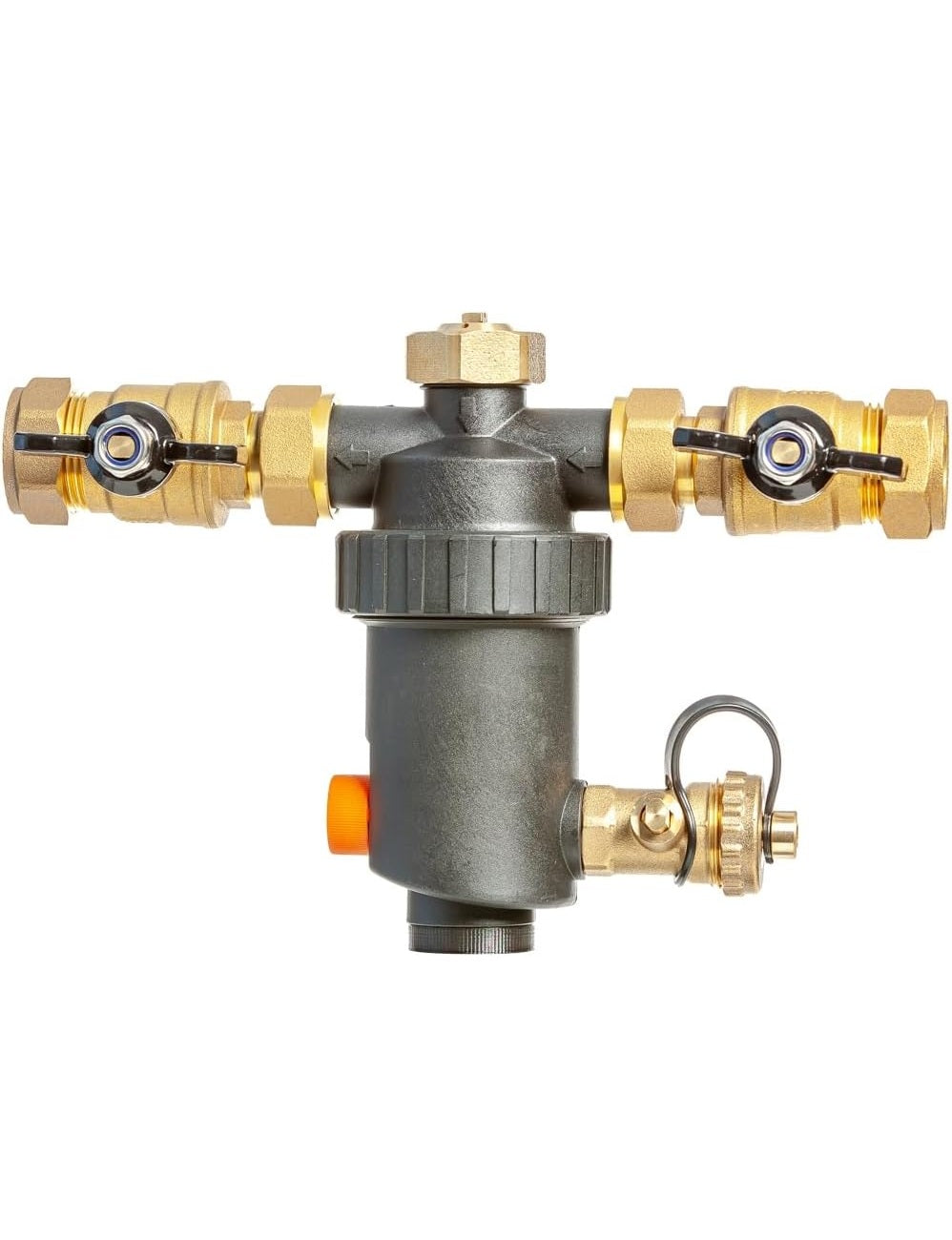

Team Controls Micro Mini Magnetic Boiler Filter 22mm – TC-MICRO

The Team Controls TC-MICRO Micro Mini Magnetic Boiler Filter is a compact and highly efficient solution designed for installation in tight compact spaces, including apartments, flats and small bungalows. Designed to improve boiler performance and system efficiency, this mini filter removes harmful debris from heating water, helping to extend the lifespan of boilers, pumps and other key components.

Featuring a durable nylon PA66-GF30% polymer body with 22mm brass compression connections, the TC-MICRO provides reliable protection while maintaining a compact footprint, making it ideal for installations where space is limited.

The advanced dual filtration system captures both magnetic and non-magnetic contaminants, including magnetite, iron, nickel and cobalt particles. A powerful 9,000 gauss neodymium magnet efficiently attracts and retains magnetic debris, helping to maintain cleaner system water and improve overall heating performance.

With its low-profile design, easy-clean features and robust construction, the Team Controls TC-MICRO is an ideal choice for maintaining efficient operation and reducing maintenance costs in smaller heating systems.

Features

• Compact 22mm magnetic boiler filter
• Removes magnetic and non-magnetic system debris
• Captures iron, nickel and cobalt particles
• Helps improve boiler efficiency and system performance
• Reduces maintenance costs and carbon emissions
• Compact design for easy installation in restricted spaces
• High-temperature EPDM seals for increased durability
• Low-level drain plug for space-saving maintenance
• Triple-seal isolating valves for enhanced protection
• Helps deliver energy savings of up to 6% per year

Specifications

• Model: TC-MICRO
• Product Type: Mini Magnetic Boiler Filter
• Connection Size: 22mm Compression
• Body Material: Nylon PA66-GF30%
• Magnet Type: Neodymium
• Magnetic Strength: 9,000 Gauss
• Height: 150mm
• Width: 220mm
• Weight: 636g
• Maximum Internal Volume: 120ml
• Maximum Temperature: 120°C
• Maximum Working Pressure: 10 Bar
• Maximum Flow Rate: 18 Litres per minute at 10kPa
• Maximum Debris Capacity: 115g

Benefits

• Protects boilers and heating components from harmful debris
• Maintains fuel efficiency by keeping system water cleaner
• Extends the working life of heating systems
• Reduces the risk of breakdowns and costly repairs
• Easy to install, clean and maintain

The Team Controls TC-MICRO Micro Mini Magnetic Boiler Filter provides powerful filtration in a compact design, delivering reliable protection, improved efficiency and long-term performance for smaller central heating systems.
