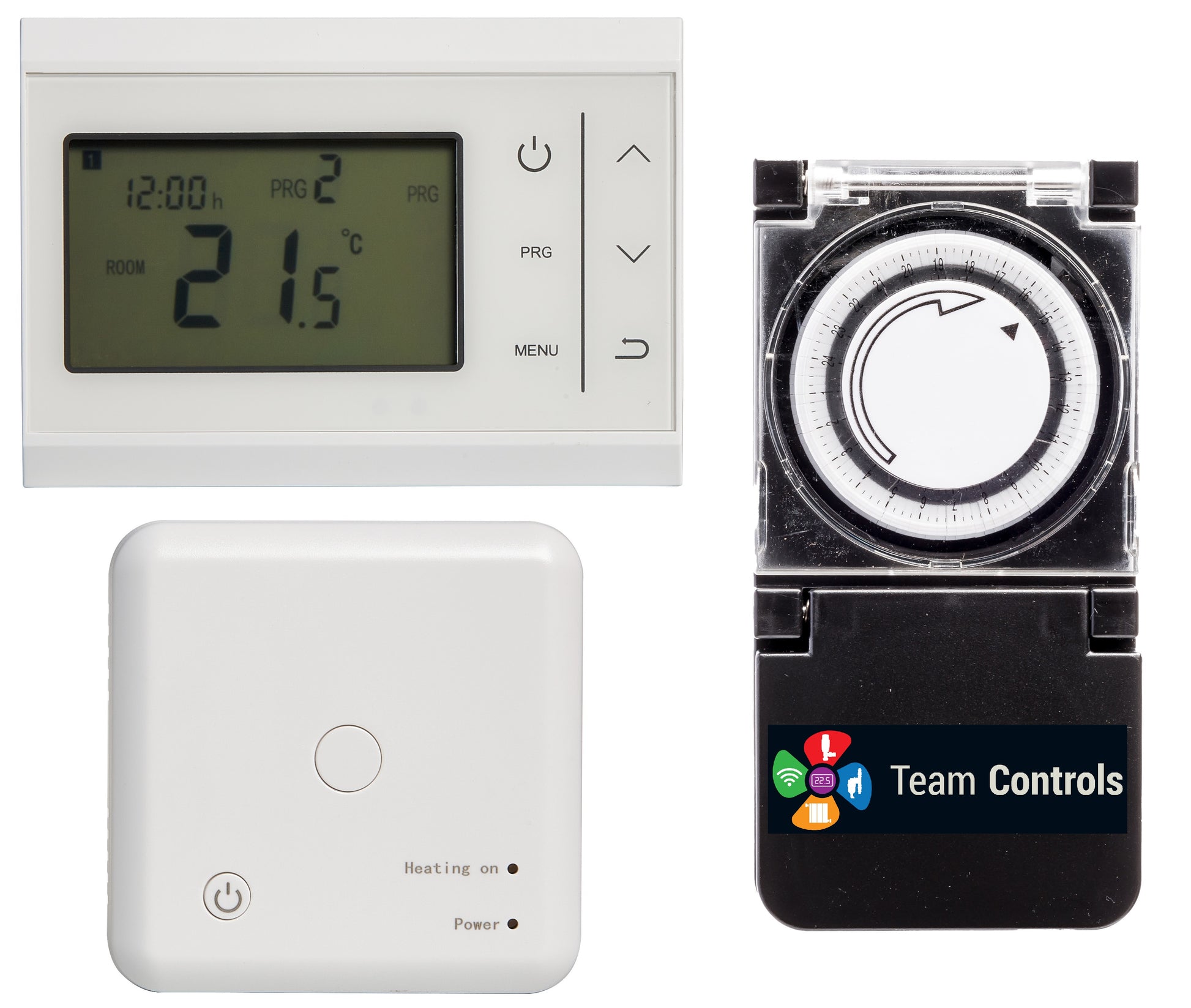

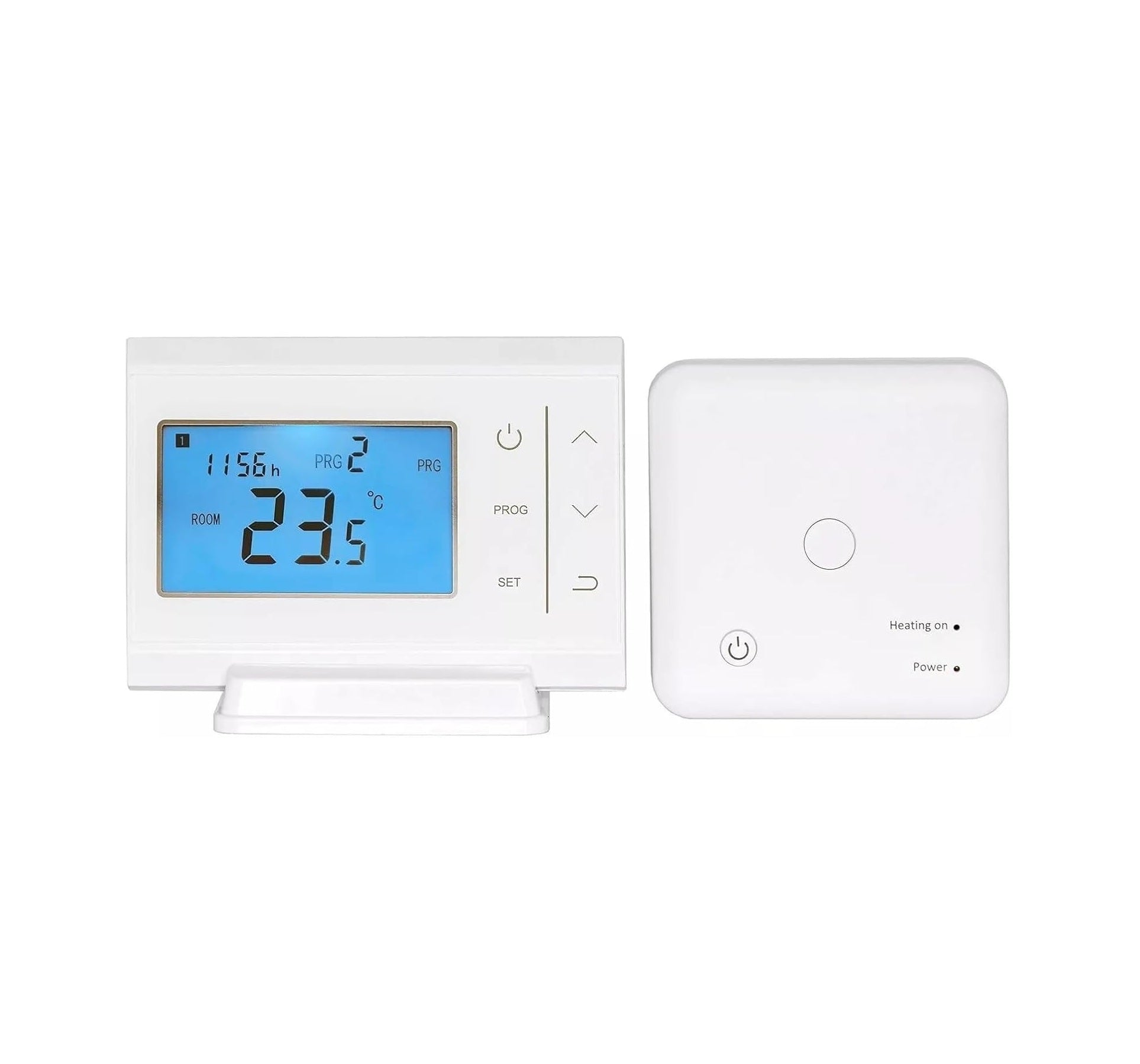

Team Controls Wireless Programmable Room Thermostat – TC-RFSTAT

The Team Controls TC-RFSTAT Wireless Programmable Room Thermostat provides convenient and accurate control of conventional heating systems without the need for hard-wired communication between the thermostat and receiver. Designed for surface mounting, it allows you to programme heating times and temperatures to suit your daily routine, helping maintain a comfortable indoor environment while improving heating efficiency.

Featuring a large, clear backlit display and six capacitive touch buttons, the TC-RFSTAT is simple and intuitive to operate. The display shows the set temperature, current room temperature and time, while the programmable schedule allows four temperature periods per day across a 5+1+1 weekly programme.

The wireless thermostat communicates with the receiver using an 868MHz RF signal, providing flexible installation without the need to run thermostat cable between the control and boiler. The receiver can be manually switched ON or OFF when required and features two LED indicators for clear operating status.

Additional features include frost protection, temperature calibration and an open-window detection function, providing enhanced control and protection for your heating system.

Features

• Wireless programmable room thermostat
• 5+1+1 weekly programming
• Four programmable periods per day
• Large clear backlit display
• Six capacitive touch control buttons
• Displays set temperature, measured temperature and time
• 868MHz RF wireless communication
• Frost protection function
• Open-window detection
• Temperature calibration
• Easy surface mounting
• Separate wireless transmitter and receiver
• Manual ON/OFF control on receiver
• CE and RoHS approved

Transmitter Specifications

• Power Supply: 2 x AAA batteries – Not Included
• Ambient Temperature: 0°C to 50°C
• Operating Room Temperature: 5°C to 30°C
• Sensor: NTC 10K
• Accuracy: ±1°C
• Temperature Calibration: Yes
• Frost Protection: Yes
• Open Window Detection: Yes
• RF Frequency: 868MHz
• Dimensions: 120 x 85 x 22mm

Receiver Specifications

• Power Supply: 220–240V AC
• Maximum Load: 10A
• Manual Control: ON/OFF
• Indicators: 2 x LED
• Dimensions: 86 x 86 x 26mm

Battery Requirement

The thermostat transmitter requires 2 x AAA batteries, which are not included.

The Team Controls TC-RFSTAT Wireless Programmable Room Thermostat is an ideal solution for homeowners and installers looking for flexible, easy-to-use heating control. With wireless installation, programmable scheduling, clear display and useful energy-saving features, it provides reliable temperature management for conventional heating systems.
